      Draw Vanity Extending Over Toilet

      Use the Notch feature in Step 2 to create a vanity that extends over a toilet or other structure.

      1. On Step 1 draw your countertop. Include the length of the extended piece in your total length.

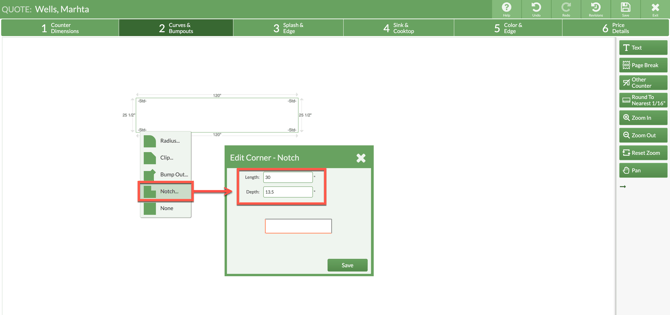

      2. Go to Step 2 and click on the corner where the toilet is located. Select Notch.
      3. Enter the Length and Depth. Save.
      4. Note that the square feel calculated for material and/or fabrication will be the entire bounding rectangle - as if the notch piece had not been removed.
